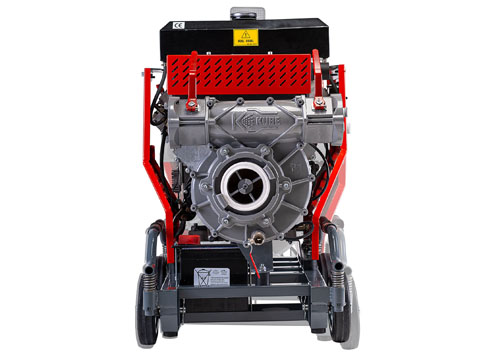

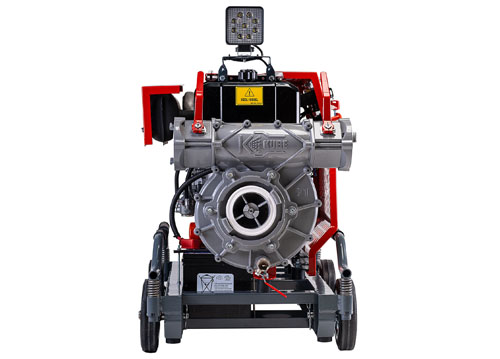

Our P1 Diesel model pump with NATO Stock Number (NSN) offers a reliable and standards-compliant solution for light and medium-scale tasks in hazardous and high-security zones.
Kube Pompa takes pride in its patented mechanical priming system—a breakthrough that eliminates the need for primers and complex components such as flap valves, tricomats, exhaust primers or vacuum systems. With fully automatic, seamless first-priming capability, we achieve the world’s fastest priming performance: pulling water from 6 meters in just 5 seconds and from 9.5 meters in only 10 seconds.
Thanks to superior engineering adaptability, Kube Pompa portable fire pumps can operate in all water conditions: clean water, dirty water, seawater, sewage, floodwater, muddy water, water mixed with petroleum or industrial wastewater— delivering uninterrupted, high performance and operational reliability in every environment.
Kube Pompa’s patented priming system completely removes the need for a mechanical seal on the critical pump shaft. This engineering success gives our portable fire pumps the world’s first and only “indefinite dry-run” capability. Five minutes, fifteen minutes or an hour—run it dry as long as you want without worrying about damage. The only loss is the fuel consumed.
Designed for full compliance with EN 14466, Kube Pompa never compromises on lightness and ergonomics. Pump components produced via corrosion-resistant aluminum alloy injection molding combine with a light, high-strength stainless-steel chassis and durable aluminum body panels, plus the sector’s most efficient engines. As a result, our portable fire pumps are lighter than competitors, boosting operational agility and enabling fast transport with just two personnel.
Kube Pompa builds its design philosophy on easy maintenance and rapid repair. Its modular, sectional structure lets critical pump components be disassembled and reassembled in minimal time. This enables maintenance and repairs to be completed quickly in the field with low technical expertise and few tools. A compact, standardized component structure delivers low spare-part costs and long-term operational efficiency in after-sales service.
| Birim | Tanım |
|---|---|
| Engine |
Diesel, air-cooled, V-type 2-cylinder, 4-stroke 954 cc, 17 kW, electric start |
| Pump |
Single-stage centrifugal pump; sea water resistant aluminum alloy pump body and impeller Stainless pump shaft, stainless shaft bearings, shaft sealing with Viton oil seal allowing dry-run capability Cathodic coating and electrostatic powder paint for corrosion resistance |
| Connections |
Suction line: 4" Storz; discharge line: 2 x 2.5" Storz, ball valve |
| Chassis and Body |
304-grade stainless steel chassis, ergonomic lifting handles that rotate in all directions at four points High-strength aluminum body, mechanical controls and gauges High-capacity 12V LED lamp, 12V 42Ah battery |
| Fuel Capacity |
6 liter internal fuel tank |
| Performance (at 6 m suction depth) |
400 L/min - 6 bar 1000 L/min - 4 bar |
| Priming System |
Primer-free, patented mechanical fully automatic priming system |
| Weight |
Dry weight: 125 kg Ready-to-run weight: 145 kg |
| Dimensions |
L x W x H: 600 x 850 x 750 mm |
| Options |
Discharge coupling type BS, Gost, NEN, NH etc. 12V 60 Ah battery |
UYARI: Tablodaki değerler yaklaşık değerler olup, kullanılan motorun markasına ve modeline göre teknik değerler değişiklik gösterebilir.
Kube Pompa-produced suction hoses are designed in full compliance with TS EN ISO 4641 standards, 4- inch diameter and 2 meters long. Made from rubber reinforced with spiral steel wire, these hoses contain Kube Pompa's patented mechanical system. With Storz connections, our hoses have the durability to operate uninterrupted for many years even under the toughest conditions.
Kube Pompa suction filters feature a body produced with high-strength plastic injection molding; at the front is a debris-trap filter made of corrosion-resistant stainless steel. Inside sits Kube Pompa's patented impeller, the heart of the suction system. With a 4-inch Storz connection, this filter allows particle permeability up to 10 mm, ensuring uninterrupted and reliable operation.
Kube Pompa coupling wrenches are designed for full compatibility with 4-inch, 2.5-inch and 2.0- inch Storz couplings. Made from 8 mm thick steel plate, these wrenches are strengthened with high-durability electro-galvanized coating for surface protection.
Allows Kube Pompa portable fire pumps to be moved easily on the ground. Up to 4 wheels can be attached to each pump.
These ropes, 10 mm in diameter and 15 meters long, let you bear the weight of suction hoses and operate the pumps safely when drawing from depths greater than 6 meters.
Contains the parts needed during annual periodic maintenance of the engines.
